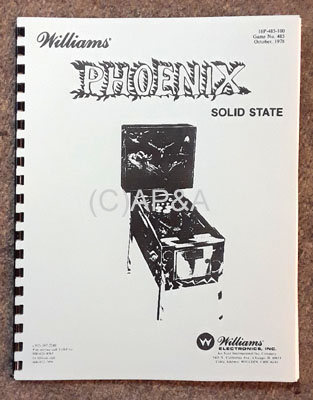

Phoenix (1978) (Williams) Game Manual & Schematics:

Price: $27.38 each

Status: In Stock
Order:



Part #: PM0299
Condition: New (Reprint)
36 pages. Includes game setup/operating info, adjustments/settings, diagnostics, troubleshooting, lamp/switch/solenoid charts, cable/wiring interconnect charts, and fold-out electronic schematics & wiring diagrams. Reprint manual in new condition. Original factory part # 16P-485-100.

NOTE: No returns on Paperwork Items - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    WILLIAMS: Phoenix (1978)
