Cube Relay - 48vdc DPDT PIN Leads (8-Pin - LATER BOARDS) Flipper Enable (K1) (Bally / Stern) (USED):

Price: $12.00 each
Status: In Stock
(3 Available)

Order:

Part #: RELAY_BLY_K1PU
Condition: Used

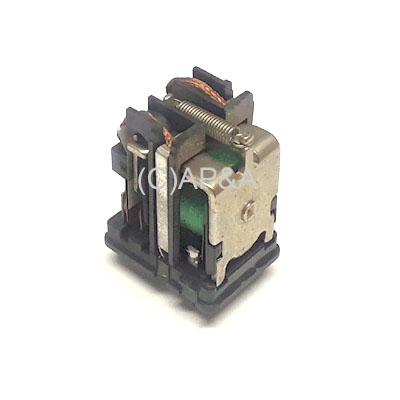

Used PIN-TERMINAL cube-style relay, missing clear plastic cover. Used on both Solenoid Expander PC boards, and solenoid/regulator PC boards (K1 flipper enable relay) in electronic solid-state (SS) Bally and Stern pinball games 1977-1985, and Bally/Midway 6803 CPU boards up to approx. 1989.

THIS RELAY USES SMALL PIN LEADS (pcb-mount - see image below) which are used on most Bally and Stern PC boards. If you have a board with a relay socket, and/or require a relay with larger LUG leads, use # RELAY_BLY_K1L instead.

Pin leads on this relay are offset: switch pins (6) measure approx. 0.390 inch apart (center-to-center), and coil leads (2) measure approx. 0.540 inch apart (center-to-center). See additional image below for pin spacing/measurements.

48vdc relay with double-pole, double-throw contacts (DPDT). Contacts rated for use up to 10 amps at 28vdc or 240vac. Relay coil measures 2.6k ohms resistance. Measures 21mm wide x 27mm long x 34mm tall. 8 solder lugs on bottom of relay mount directly to PC board.

Replaces Bally/Midway part #s E-146-795, E-00146-0795, and 114E-00001-0011.

Used part in good working condition. Clear plastic cover is missing (not a functional part of the relay- still works same without it).
