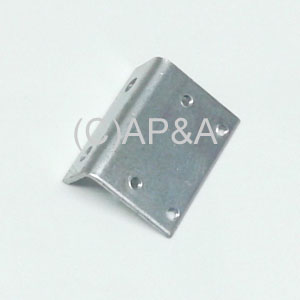

Mounting Bracket - Large Microswitch (Bally/Williams):

Price: $13.89 each
Status: In Stock
(6 Available)

Order:

Part #: 01-7151
Condition: New

Mounting bracket with 90-degree bend for mounting large microswitches for outhole, ball saucer/eject, and similar devices.

Fits many Bally and Williams games, and some Data East games.

Measures 1-1/4 inch wide, 7/8 inch tall, 1/2 inch deep. Includes 2 large screw mounting holes for securing to playfield, and four (4) #4-40 machine-screw holes for mounting switch (allows for switch to be reversed- left or right mount).

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family, Addams Family, Addams Family Gold, Black Rose, Bugs Bunny's Birthday Ball, Creature From the Black Lagoon, Doctor Who, Dr. Dude, Gilligans Island, Harley Davidson (Bally), Party Zone, Radical!, Theatre of Magic, Twilight Zone

DATA EAST: Jurassic Park

WILLIAMS: Dracula, Fish Tales, Funhouse, Getaway High Speed II, Hurricane, Indiana Jones, Machine: Bride of PinBot, Riverboat Gambler, Space Station, Terminator 2, White Water
