Mounting Bracket - Spinner Target / Ball Gate (Bally/Williams):

Price: $8.89 each
Status: In Stock
(3 Available)

Selection: (Click to Select)
Order:

Part #: 01-8341
Condition: New

Metal mounting bracket for spinner target or wireform ball gate on some Bally and Williams games (see game listing below).

May fit/work with some other makes/models that take a bracket with same measurements (see measurements below).

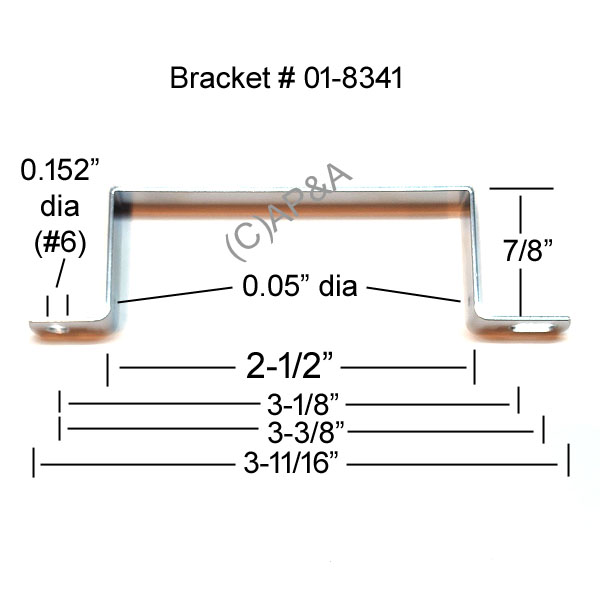

MEASUREMENTS: 2-1/2 inches width on the center raised section. Overall width is 3-11/16 inches. Height 7/8 inch. One mounting screw hole is elongated to allow for adjustment, fitting a span of 3-1/8 inches minimum, to 3-3/8 inches maximum. Screw mounting holes accommodate #6 diameter screws or studs (sold separately).

PART OPTION: Available with either 0.05 or 0.07 inch diameter mounting holes for spinner target or ball gate wireform (ships with smaller 0.05-inch diameter holes by default. Select larger 0.07-inch diameter holes if your spinner target or ball gate wireform has the larger 0.07-inch diameter wire).

EXAMPLES:

Williams spinner # A-7861 and ball gate # 12-6505 both have 0.05-inch diameter wireforms, so will fit this bracket as it ships by default with the 0.05-inch holes.
Bally spinner # A-3460 and Williams ball gate # 12-6731 both have 0.07-inch diameter wireforms, so will fit this bracket modified with the larger 0.07-inch diameter holes.

Additional Images:
Click to Enlarge

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Bugs Bunnys Birthday Ball, Harley Davidson (Bally), Radical!, World Cup Soccer '94

WILLIAMS: Machine: Bride of PinBot
