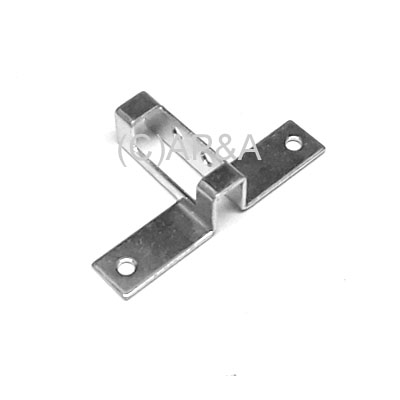

Switch Mounting Bracket (Bally/Williams):

Price: $26.45 each
Status: Out of Stock
Part #: 01-9476-2
Condition: New

Ramp switch bracket for many late-model Bally and Williams games. Mounts on top of ramp and ball rolling underneath actuates switch (not included - order switch # 5647-12693-21 sold separately).

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family, Addams Family Gold, Corvette, Doctor Who, Popeye Saves the Earth, Twilight Zone, World Cup Soccer '94

WILLIAMS: Funhouse, No Good Gofers, Road Show, Star Trek: The Next Generation, White Water
