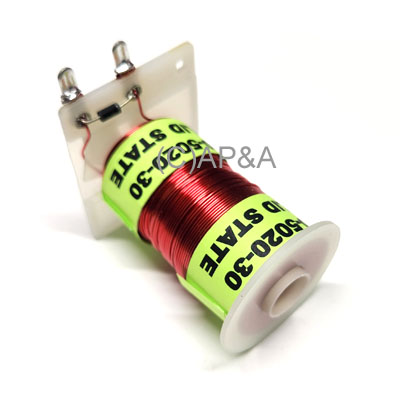

Coil - 090-5020-30 (23-900):

Price: $23.99 each
Status: In Stock
(4 Available)

Order:

Part #: 090-5020-30
Condition: New

Flipper coil (solenoid) for some Data East, Sega, and late-model Stern Pinball games. 23-gauge wire with 900 turns, 3.8 ohms resistance. for full flipper assembly # 500-5693-01 and similar others. Replaces G.A.M.E. # D0759.

Includes coil sleeve and diode across top (front) of solder lugs.

NOTE: This is the correct flipper coil for Maverick (upper and lower flippers). Manual has a typo for upper flipper coil part number (090-5050-30) which is incorrect (should be 090-5020-30).

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Back to the Future, Batman, Checkpoint, Hook (right), Jurassic Park (lower), Last Action Hero, Maverick (all), Phantom of the Opera, Rocky and Bullwinkle and Friends, Simpsons, Teenage Mutant Ninja Turtles, Tommy (all)

SEGA: Batman Forever (upper right), Baywatch (lower right), Independence Day (upper)

STERN: 24, Big Buck Hunter Pro, Elvis (upper), Elvis Gold (upper), Mustang (left), NBA (right)
