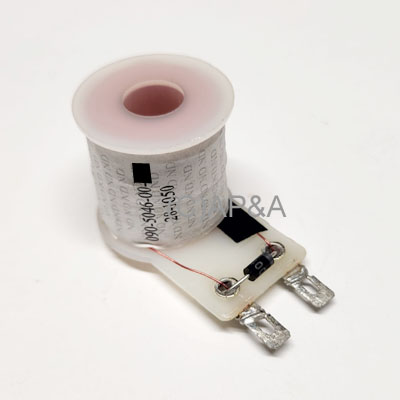

Coil - 090-5046-00 (28-1050) with diode:

Price: $21.49 each
Status: In Stock
(1 Available)

Order:

Part #: 090-5046-00
Condition: New

Small coil (solenoid) for some Data East, Sega, and late-model Stern Pinball games.

Includes diode across top (front) of solder lugs.

COIL SLEEVE NOT INCLUDED- order separately, either # 545-5500-00 (flanged), or # 545-5442-00 (non-flanged), depending on which one your game/mechanism requires.

Image is sample only- wrapper style/color may vary depending on availability.

NOTE: Not to be substituted for/with coil # 090-5046-01 or coil # 090-5046-01-ND (not compatible).

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Guns N Roses, WWF Royal Rumble

SEGA: Apollo 13, Baywatch, Frankenstein, Lost in Space, Viper Night Drivin'

STERN: Family Guy, Shrek, Simpsons Pinball Party
