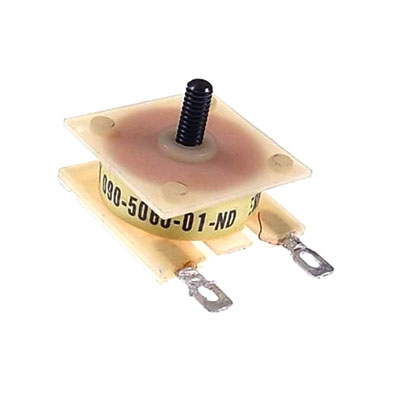

Coil - 090-5060-01-ND (Stern):

Price: $23.99 each
Status: Out of Stock
Part #: 090-5060-01-ND
Condition: New

Short trip relay coil for gate/diverter in some later-model Stern Pinball games (see game listing below). Part of control gate assembly #s 511-5033-00 (left) and 511-5033-01 (right).

Includes 3/8-inch threaded stud on top for mounting (#8-32 thread pitch). No diode across solder lugs. Approx. 35 ohms resistance.

Can substitute with Gottlieb # A-19508 as long as A-19508 has diode removed, or wires connected with proper polarity in regard to diode orientation.

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: 24, Aerosmith Premium, Batman (Stern), Batman 66 Catwoman (Stern), Batman 66 Limited Edition (Stern), Batman 66 Premium (Stern), Black Knight: Sword of Rage Premium (Stern), Black Knight: Sword of Rage Pro (Stern), Deadpool Pro, Game of Thrones LE, Game of Thrones Premium, Game of Thrones Pro, Ghostbusters Premium, Guardians of the Galaxy Pro, Iron Maiden Legacy of the Beast LE, Iron Maiden Legacy of the Beast Premium, Jurassic Park Home Model (Stern), Spider-Man (Stern), Spider-Man Home Model (Stern), Spider-Man Vault Edition (Stern), Star Wars Comic Art Premium (Stern), Star Wars Comic Art Pro (Stern), Star Wars Home Model (Stern), Star Wars Premium, Star Wars Pro (Stern), Stranger Things LE, Stranger Things Premium, WWE Wrestlemania Pro
