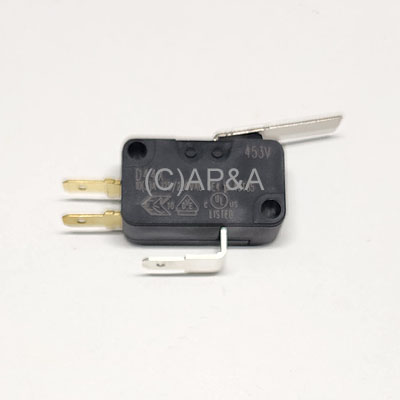

Large Microswitch With Short Blade (substitute for 180-5009-00 - SEE NOTE):

Price: $6.89 each
Status: In Stock
(35 Available)

Order:

Part #: 180-5009-01
Condition: New

Large microswitch with short blade actuator for ball trough in many Bally, Data East, and Williams games.

Also works with joysticks on some Namco games such as Ms. Pac-Man/Pac-Man/Galaga Reunion and similar others.

Replaces Data East/Sega # 180-5009-00, Williams # 5667-09957-00, and # 95-4177-00.

Microswitch body measures 1-3/32 inches long x 5/8 tall x 3/8 wide. Blade extends 7/16-inch from front of microswitch body.

NOTE: Actuator blade on this switch is mounted in the FRONT position on the switch body. Original 180-5009-00 switch had blade mounted in REAR position on switch body. This substitute switch may require adjustment to the blade for proper operation. Blade is not moveable to rear position on switch body without cracking open the switch body (not recommended).

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
NAMCO: Ms. Pac-Man/Pac-Man/Galaga Reunion, more
