Large Microswitch With Blade Actuator (Data East) (SEE NOTES):

Price: $7.64 each
Status: In Stock
(35 Available)

Order:

Part #: 180-5040-00A
Condition: New

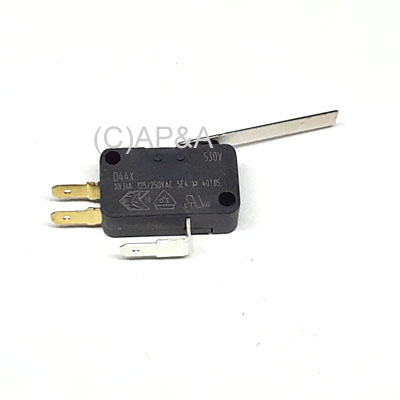

Replacement microswitch assembly with blade actuator for some Data East games (see game listing below).

Approx. 1-1/2 inch long blade actuator.

Replaces discontinued part # 180-5040-00.

NOTE: Data East Lethal Weapon 3 game manual calls for smaller switch # 180-5010-00 in ball trough right position (switch # 13). However, some or all Lethal Weapon 3 games will take this larger switch instead. Please check your game before ordering to determine which switch you need. If your game takes the larger switch, please order the switch shown here (# 180-5040-00A) instead of 180-5010-00.

NOTES:

This is a modern aftermarket replacement switch. Fit and function are same as discontinued original switch, with minor physical differences noted below.
Microswitch body measures 1-3/32 inches long x 5/8 tall x 3/8 wide.
3/16 inch wide actuator blade (discontinued original had 5/32 inch wide blade).
Forward-mounted actuator blade (original was rear-mounted).
10 grams activation force (10gf).
Some adjustment may be required after installation for proper operation, as is common with any switch replacement.
See additional image below for typical wiring connections.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Jurassic Park, Lethal Weapon 3, more
