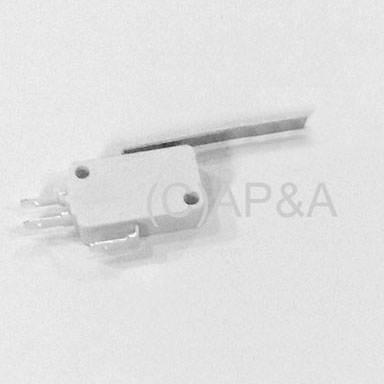

Large Microswitch with 1-3/4 In Blade Actuator (Data East) (SEE NOTES):

Price: $7.39 each
Status: In Stock
(94 Available)

Order:

Part #: 180-5129-00
Condition: New

Replacement microswitch assembly with blade actuator for some older Data East games (see game listing below).

Straight flat actuator blade measures 1-3/4 inches length.

NOTES:

This is a modern aftermarket replacement switch. Fit and function are same as discontinued original switch, with minor physical differences noted below.
Microswitch body measures 1-3/32 inches long x 5/8 tall x 3/8 wide.
3/16 inch wide actuator blade (discontinued original had 5/32 inch wide blade).
Forward-mounted actuator blade (original was rear-mounted).
10 grams activation force (10gf).
Some adjustment may be required after installation for proper operation, as is common with any switch replacement.
Image is sample only- actual item may vary in color/appearance.
See additional image below for typical wiring connections.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Last Action Hero
