Reed Switch Assembly 4-Tab (Sega / Stern):

Price: $34.99 each
Status: In Stock
(3 Available)

Order:

Part #: 180-5145-XX
Condition: New

Reed switch assembly with 4 mounting tabs for many Sega and modern Stern Pinball games.

Commonly found on ramps to detect ball movement without a mechanical or opto switch.

Includes wiring and connector plug- ready to plug and play.

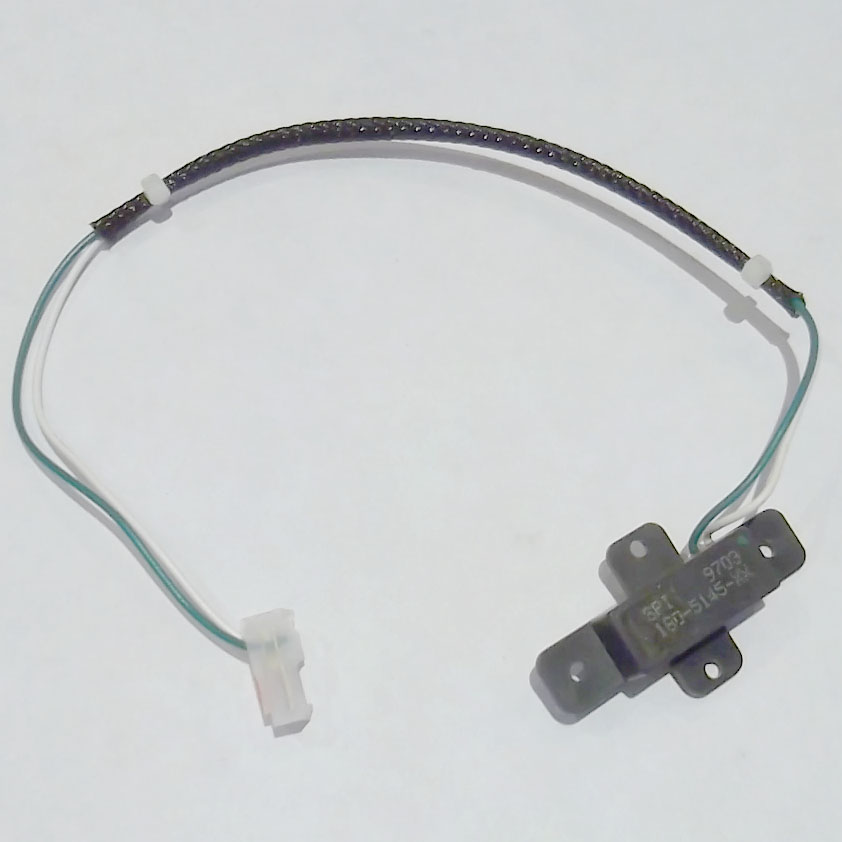

Replaces original part # 180-5145-00, which came with two mounting tabs. This part now comes with four mounting tabs on sides and ends, as pictured (tabs can be trimmed off for fit, if necessary).

Will replace original part #s 180-5142-00, 180-5142-01,180-5145-00, 180-5145-01, 180-5145-02, 180-5145-XX.

Can often subtitute in Bally/Williams games to replace obsolete reed switch # 20-10293.

Due to slightly different design, this part may require modification or alternate mounting if installed in a game it was not designed for.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
SEGA: Space Jam, more
