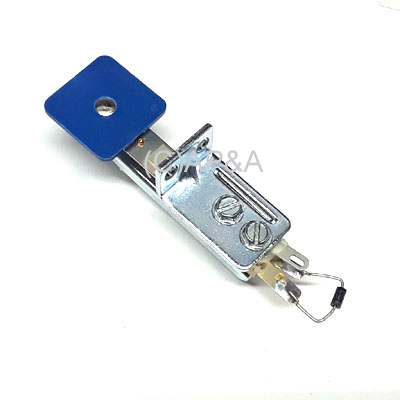

Target Switch Assembly - Dark Blue 1-Inch Square (Stern):

Price: $19.97 each
Status: In Stock
(3 Available)

Order:

Part #: 500-5232-05-DB
Condition: New

Dark blue stationary standup target switch assembly, square. Target face measures 1 inch. Includes diode on solder lugs and stabilizing mounting bracket.

Slightly darker shade of blue than standard blue target.

Wires must be connected with correct polarity. If installing in a late-model Bally, Data East, Stern, or Williams game, green wire(s) will go to empty solder lug, and white wire(s) will connect to solder lug with diodes anode (non-banded) end.

Ask a question about this item
