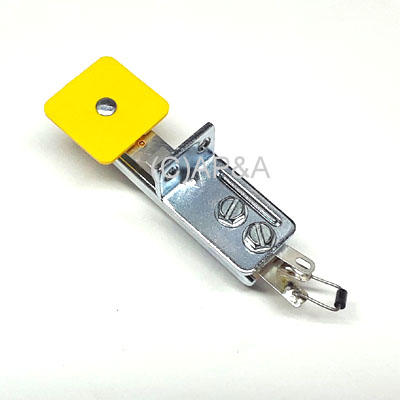

Target Switch Assembly - Yellow 1-Inch Square (Stern):

Price: $18.78 each
Status: In Stock
(5 Available)

Order:

Part #: 500-5232-06
Condition: New

Yellow stationary standup target switch assembly, square. Target face measures 1 inch. Includes diode on solder lugs and stabilizing mounting bracket.

Wires must be connected with correct polarity. If installing in a late-model Bally, Data East, Stern, or Williams game, green wire(s) will go to empty solder lug, and white wire(s) will connect to solder lug with diodes anode (non-banded) end.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: Roller Coaster Tycoon
