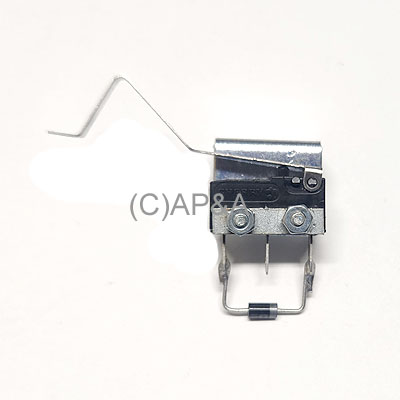

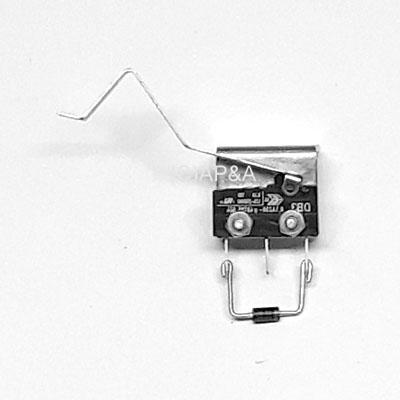

Microswitch Assembly w/ Blade Actuator and Mounting Bracket:

Price: $20.40 each
Status: In Stock
(4 Available)

Order:

Part #: 500-5442-01
Condition: New

Microswitch assembly including microswitch body with angled actuator blade, switch diode, 90-degree mounting bracket, and associated hardware.

Fits some older Data East games.

Reversible switch- can be installed on mounting bracket in left-hand or right-hand direction by removing mounting screws and reversing switch body.

Includes the following parts:

1 Microswitch w/ actuator # 180-5057-00
1 diode # 1N4004
1 Mounting bracket # 535-6173-00
2 #2-56 x 1/2 SEMS Screw # HWR02-020206
2 #2 split washer # HWR03-020200
2 #2 hex nut # HWR01-010200
1 nut plate # 535-6539-00 (not pictured)

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Guns N Roses, Jurassic Park, Star Wars, Tales From the Crypt

STERN: Lord of the Rings, TRON: Legacy

WILLIAMS: Hurricane
