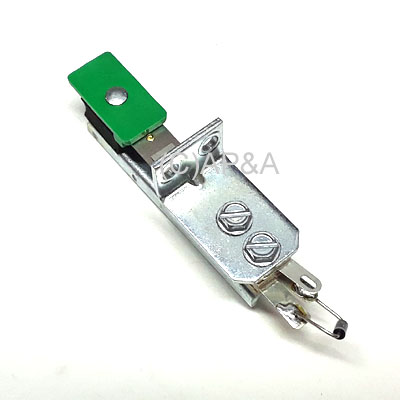

Standup Target Switch Assembly - Narrow Green (Data East/Sega/Stern):

Price: $21.17 each

Status: In Stock
(4 Available)

Order:



Part #: 500-5857-04
Condition: New
Green narrow stationary standup target switch assembly with diode and mounting bracket.

This is a modern replacement assembly with slightly different mounting bracket than original targets from 30+ years ago. Installs and operates the same.

Target face measures 1/2 inch wide x 1 inch tall.

Wires must be connected with correct polarity- if installing in a late-model Stern Pinball game, green wire(s) will go to empty solder lug, and white wire(s) will connect to solder lug with diodes anode (non-banded) end.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    SEGA: Apollo 13, Goldeneye, Independence Day

    STERN: Family Guy, Pirates of the Caribbean, Shrek, Wheel of Fortune
