Ball Auto-Launch Coil and Bracket Assembly (Stern):

Price: $51.23 each
Status: In Stock
(1 Available)

Order:

Part #: 500-6092-02-ND
Condition: New

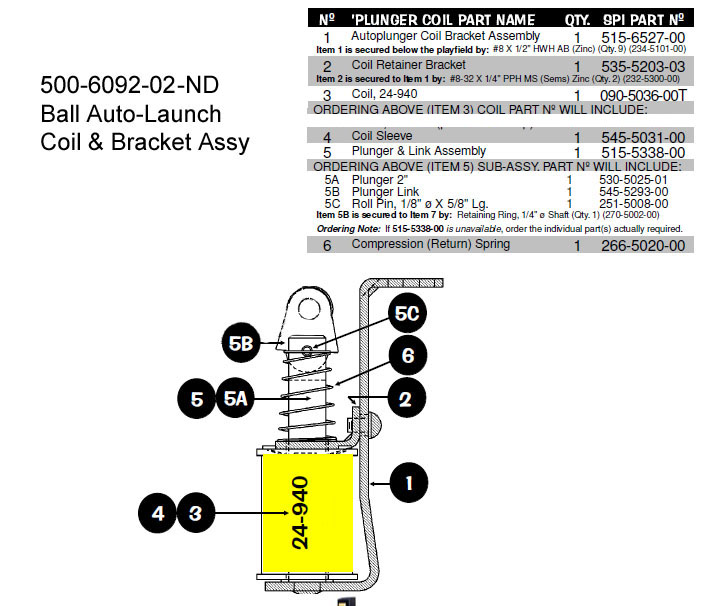

Coil and bracket assembly for ball auto-launch mechanism in some late-model Stern Pinball games.

Includes the following parts:

Coil # 090-5036-ND (24-940)
Coil sleeve # 03-7066
Coil bracket # 515-6527-00
Coil retainer bracket # 535-5203-03
Coil retainer bracket screws (2) # HWR02-090802
Coil plunger and link # 515-5338-00
Coil plunger spring # 266-5020-00

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: 24, Avatar, Avatar Limited Edition, Avengers, Avengers LE, Avengers LE Blue, Avengers LE Hulk, Avengers Premium, Avengers Pro, Batman the Dark Knight (Stern), Big Buck Hunter Pro, CSI, Family Guy, Iron Man, Metallica, NBA, Rolling Stones (Stern), Shrek, Sopranos, Spider-Man (Stern), Transformers, TRON: Legacy, Wheel of Fortune, World Poker Tour, X-Men
