Switch PCB Assembly w/ Diode and Capacitor - Modular Standup Target:

Price: $6.99 each
Status: In Stock
(15 Available)

Order:

Part #: 500-6138-SW
Condition: New

Switch PCB assembly for modular targets found on some Sega and Stern Pinball games (see game listing below).

This modern replacement part includes a diode and capacitor on the PCB, and 15mm long header pins with 0.100-inch spacing.

Connects to existing wiring/connector housing in game. See Related Items listing below for connector parts and installation tools, each sold separately.

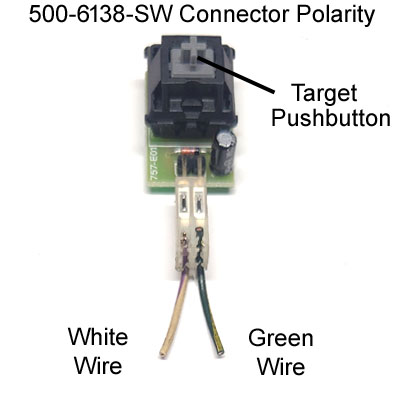

NOTE: This modern switch operates only when game wires are connected in proper orientation. If switch does not work when connected, try reversing the 2-position connector housing. See additional image below for detail.
