Click to Enlarge

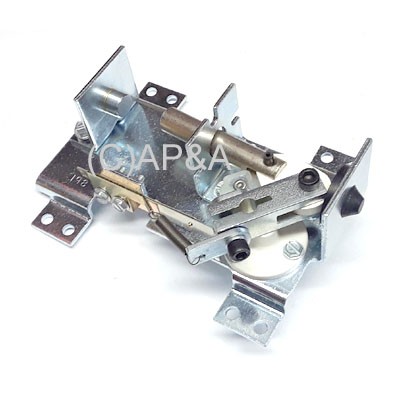

Flipper Assembly - RIGHT w/EOS w/o Coil (Stern):

Price: $67.41 each
Status: In Stock
(4 Available)

Order:

Part #: 500-6543-00-R
Condition: New

Right side flipper assembly used in many late-model Stern Pinball games. This assembly can also be used as a replacement in most older Sega and Data East games (see note below).

Includes EOS (end-of-stroke) switch. Coil and flipper bat/shaft not included (re-use your old parts, or order new parts separately).

Includes the following parts:

Right flipper baseplate with component screws # 515-6617-00
Deflector pad # 545-5428-00
Flipper bushing # 545-5594-00
Front coil support bracket # 535-7356-00
Coil stop bracket # 515-6308-01
Right plunger/link/crank assembly # 515-7203-00
Return spring # 265-5035-00
Right switch plate/spring return bracket # 535-7354-00
End of stroke (EOS) switch # 180-5149-00

NOTE: When used in older games that do not use an EOS switch, the EOS switch on this unit can be removed, or simply left disconnected. Or order part # 500-6543-00-RA which does not include and EOS switch.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: CSI, Golden Cue, Elvis (lower flippers only), Elvis Gold (lower flippers only), Family Guy (lower flippers only), Grand Prix (Stern), Indiana Jones (Stern), Lord of the Rings, Monopoly, NASCAR, NFL Pinballs (all), Roller Coaster Tycoon (lower flippers only), Sharkey's Shootout, Simpsons Pinball Party (lower flippers only), Shrek (lower flippers only), Star Trek (Stern), Star Wars (Stern), Striker Xtreme, Transformers, World Poker Tour, more
