Star Wars (Data East) T-Handle Shifter Fire Button:

Price: $13.99 each
Status: In Stock
(2 Available)

Order:

Part #: 515-5692-00
Condition: New

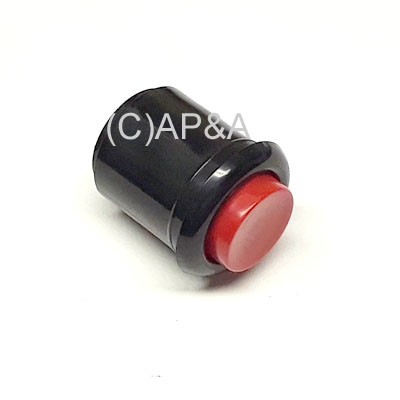

Pushbutton assembly for ball launch shifter handle on Data East Star Wars pinball.

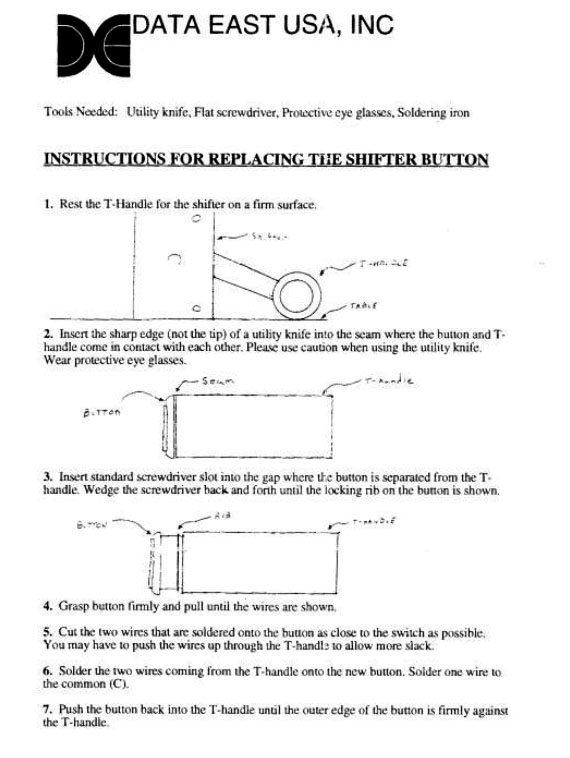

Simple replacement- see additional image below for instructions/diagram. Old button pops out and new button pops in, 2 wires require de-soldering/soldering.

Additional Images:
Click to Enlarge

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Star Wars
