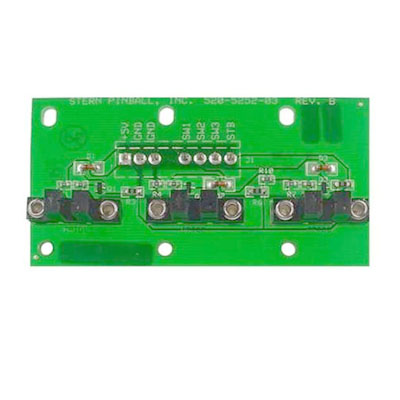

Opto Switch PC Board - 3-Bank Drop Target (Stern):

Price: $94.49 each
Status: Non-stocked, special-order item. more info...
Part #: 520-5252-03
Condition: New

Factory original 3-opto PCB for 3-bank drop target assemblies on some later-model Stern pinball games.

If your drop targets do not register when knocked down, this board may need replacing.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: AC/DC LE Back In Black, AC/DC LE Let There be Rock, AC/DC Luci, AC/DC Premium, AC/DC Pro, AC/DC Vault Premium, AC/DC Valut Pro, Mustang LE 50 Year (Stern), Mustang Premium (Stern), Mustang Pro (Stern), NBA (Stern)
