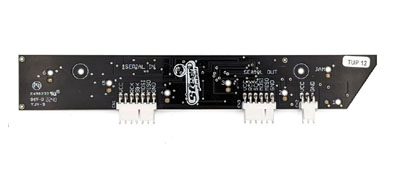

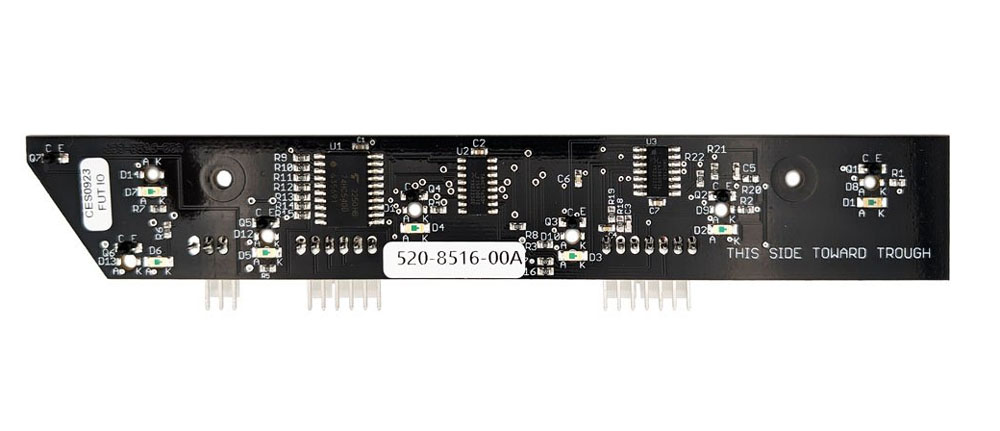

Ball Trough Opto Receiver Board - Node Extension (Stern) (SEE NOTE):

Price: $97.99 each
Status: Non-stocked, special-order item. more info...
Part #: 520-8516-00
Condition: New

Ball trough serial opto extension node board for some later-model Stern Pinball games (see game listing below).

This is the receiver board on the front of the ball trough assembly in games that have this part.

Pair with opto emitter board # 520-5344-00.

Replaces # 520-8516-00A and older part #s 520-1051-00, 520-1051-00A, 520-5345-00, 520-5345-01, and 520-7001-00.

NOTE: For older games that have only a 7-pin cable connector housing for this board, install 7-pin cable connector housing to connector header CN1 on this board. Connector headers CN2 and CN3 will remain empty.
