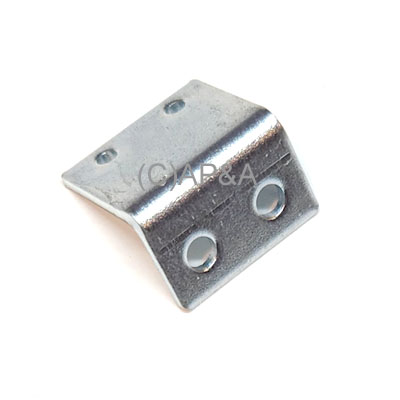

Bracket - Microswitch Mounting (Data East/Stern):

Price: $11.99 each
Status: In Stock
(1 Available)

Order:

Part #: 535-6173-00
Condition: New

90-degree mounting bracket for small microswitches on many Data East and Stern Pinball games (see game listing below).

Switch sits low on bracket when mounted (see # 500-5442-01 for full switch assembly).

Has two non-threaded mounting holes for #2-56 switch screws, washers, and nuts, and two non-threaded holes for playfield mounting screws (screws/washers/nuts sold separately).

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Hook, Star Wars, Tommy

STERN: Avatar, Batman the Dark Knight, Big Buck Hunter, CSI, Elvis, Family Guy, Indiana Jones, Pirates of the Caribbean, Ripley's Believe it or Not!, Rolling Stones, Shrek, TRON: Legacy, more
