Bracket - Microswitch Mounting (Data East/Stern):

Price: $10.79 each
Status: In Stock
(2 Available)

Order:

Part #: 535-6173-01
Condition: New

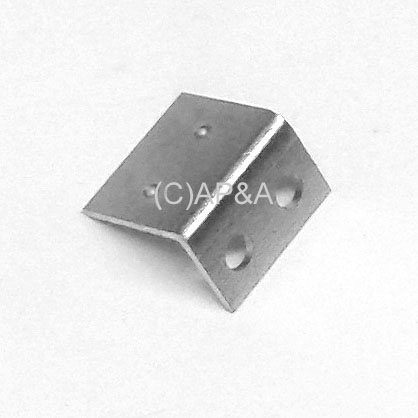

90-degree mounting bracket for small microswitches on many Data East and Stern Pinball games (see game listing below).

Switch sits high on bracket when mounted.

Has two non-threaded mounting holes for #2-56 switch screws, washers, and nuts, and two non-threaded holes for playfield mounting screws (screws/washers/nuts sold separately).

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: Avatar, Avatar Limited Edition, Batman the Dark Knight (Stern), Big Buck Hunter Pro, CSI, Elvis, Family Guy, Indiana Jones (Stern), Pirates of the Caribbean, Ripley's Believe it or Not!, Sopranos, World Poker Tour
