Large Microswitch with Blade Actuator (Bally/Williams) (SEE NOTES):

Price: $12.39 each
Status: In Stock
(35 Available)

Order:

Part #: 5647-12001-00
Condition: New

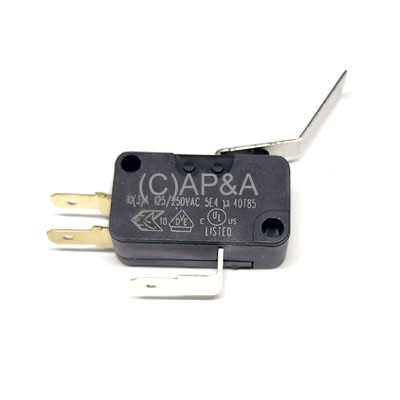

Replacement microswitch assembly with short angled blade actuator for ramp up/down mechanisms and possible other devices in some later-model Bally and Williams electronic solid-state (SS) games (see game listing below).

NOTES:

This is a modern aftermarket replacement switch. Fit and function are same as discontinued original switch, with minor physical differences noted below.
Switch lugs differ from original- requires soldering.
Microswitch body measures 1-3/32 inches long x 5/8 tall x 3/8 wide.
3/16 inch wide actuator blade (discontinued original had 5/32 inch wide blade).
Forward-mounted actuator blade.
10 grams activation force (10gf).
Some adjustment may be required after installation for proper operation, as is common with any switch replacement.
See additional image below for typical wiring connections.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item
