Spring - Drop Target Reset - Long (Stern):

Price:
Status: Out of Stock - Discontinued more info...
Part #: 5A-171
Condition: New

Discontinued - use # SP-100-350 as replacement.

Long spring used for drop targets on many older Stern games from late 1970s through 1985. Coiled section measures 1-1/2-inches long x 1/4-inch diameter. Used with all variations of Stern drop target # 13-A.

IMPORTANT NOTE:

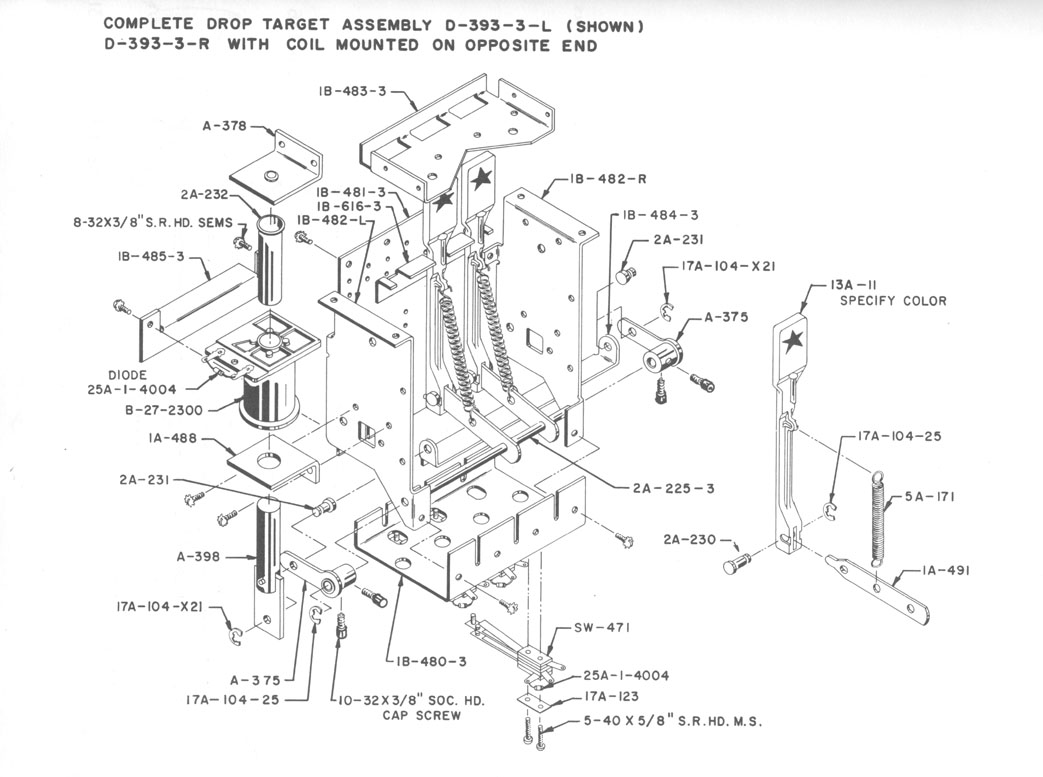

Some vintage Stern games may use a shorter spring that measures approx. 9/16-inch long (center coiled section). The long one (this one) mounts between the drop target and the metal reset link arm at the bottom of the drop target (see illustration below). If your game uses a short spring that mounts between the drop target and a spring bracket bar that mounts halfway up in the drop target assembly, then you can use Bally part # SP-100-314-S instead.

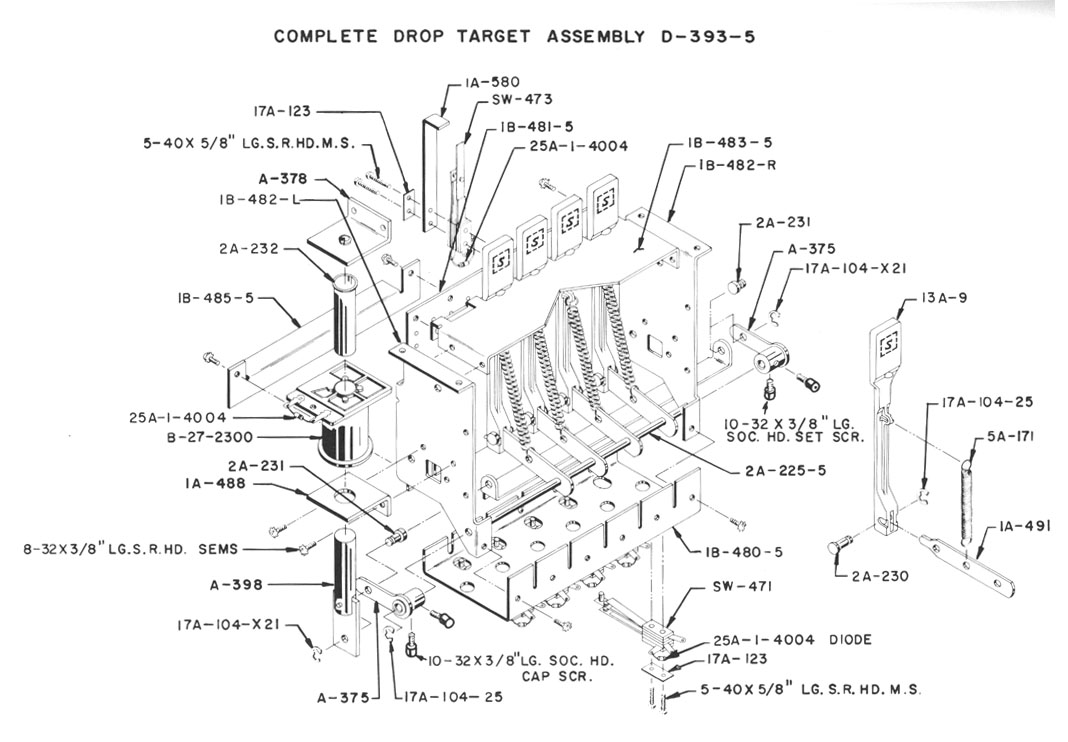

Additional Images:
Click to Enlarge

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: Ali, Big Game, Catacomb, Cheetah, Cosmic Princess, Dracula, Dragonfist, Flight 2000, Freefall, Galaxy, Hot Hand, Iron Maiden, Lectronamo, Lightning, Magic, Memory Lane, Meteor, Nine Ball, Nugent, Orbitor 1, Quicksilver, Seawitch, Split Second, Star Gazer, Stars, Stingray, Trident, Viper, Wild Fyre
