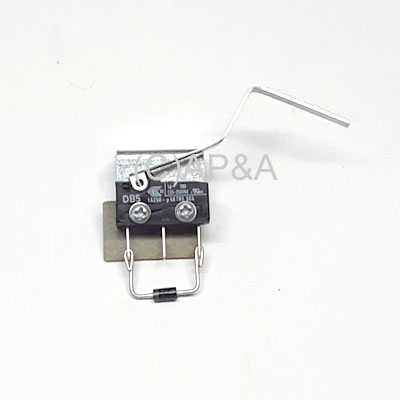

Sub Mini Switch Assembly (Bally/Williams):

Price: $22.44 each
Status: In Stock
(2 Available)

Order:

Part #: A-12238
Condition: New

Switch assembly including small microswitch with blade actuator, diode, insulator, mounting bracket, and switch screws.

Typically found on plastic ramps on most games, which requires riveting the mounting bracket to the ramp (rivets and rivet tool not included).

1 microswitch assembly # 5647-12693-13
1 diode # 1N4004
2 switch screws # HWR02-020204
1 fish paper insulator # 01-8600
1 mounting bracket # 01-8652

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Doctor Who, Gilligans Island, Judge Dredd, Theatre of Magic

WILLIAMS: Funhouse, Hurricane, Riverboat Gambler, Tales of the Arabian Nights
