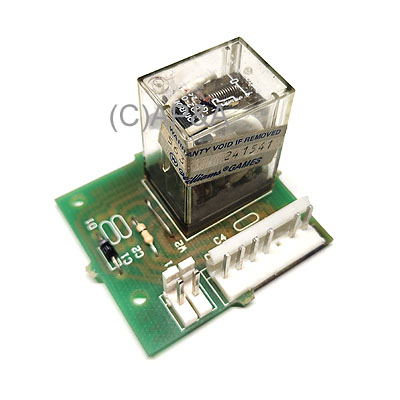

Relay Board - 12V- Coil and General Illumination (Bally/Williams):

Price: $52.69 each
Status: Non-stocked, special-order item. more info...
Part #: A-14423
Condition: New

Relay board for controlling coils and/or general illumination lights in many Bally and Williams games in late 1980s and early 1990s. 12-volt relay.

New aftermarket replacement for original obsolete factory part.

Need the 24-volt version? Order part # C-11998-1 instead.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Gilligan's Island

WILLIAMS: Hurricane, Machine: Bride of PinBot
