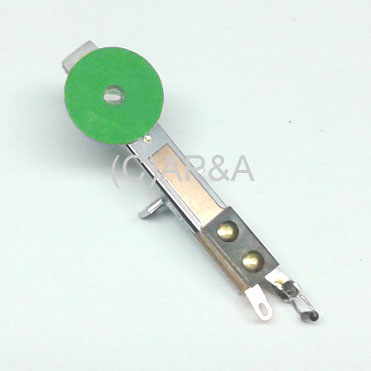

Standup Target - Round Green - Rear-Mount:

Price: $15.57 each
Status: In Stock
(9 Available)

Order:

Part #: A-14690-2
Condition: New

Replacement round green standup (stationary) target. Used on late-model Bally and Williams games but can be used on older models and other makes/models as well. Includes mounting bracket and switch diode, as pictured. Rear-mount target- mounting bracket is on back of target. Target face is 1-inch diameter.

Replaces #s A-15118-2, B-12039-2, B-14077-2.

Requires two screws for mounting (not included- use our part # HWR02-030606). Wires must be connected with correct polarity- if installing in a late-model Bally or Williams game, green wire(s) will go to empty solder lug, and white wire(s) will connect to solder lug with diode's anode (non-banded) end.

NOTE: This is a modern Bally/Williams style replacement target. Target may sit slightly lower (about 3/32-inch (2mm)) when used on older games. If replacing targets on older games, you might consider replacing all targets in the bank at the same time, to retain uniform alignment.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Black Rose, Dr. Dude
