Addams Family / Addams Family Gold (Bally) Main Cabinet Knocker Assembly:

Price: $140.50 each
Status: Non-stocked, special-order item. more info...
Part #: A-15267
Condition: New

Knocker mechanism in main cabinet of Bally Addams Family and Addams Family Gold pinballs.

Operates during Seance mode in Addams Family, and both Seance and Tunnel Hunt modes in Addams Family Gold.

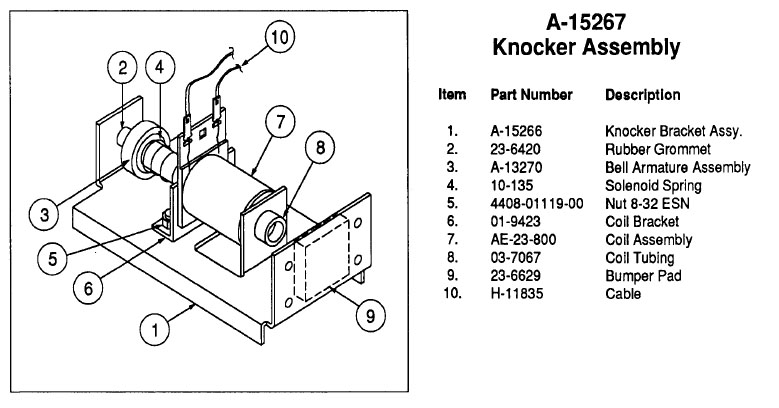

Includes the following parts:

Bracket assembly # A-15266
Rubber grommet # 23-6420
Coil plunger # A-17767 (replaces discontinued part # A-13270)
Spring # 10-135
Nylock nut (2) # 4408-01119-00
Coil bracket # 01-9423
Coil # AE-23-800
Flanged coil sleeve # 03-7067
Rubber bumper pad # 23-6629
Wire cable w/ connector # H-11835

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family, Addams Family Gold
