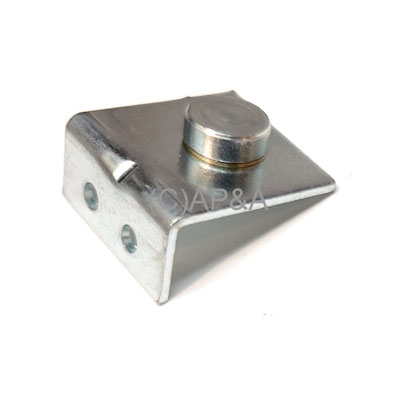

Coil Stop with 3/16-in Core (Williams):

Price:
Status: Out of Stock - Discontinued more info...
Part #: A-8037
Condition: New

Discontinued - may be able to substitute # A-8143 (taller core plug). A-8143 may work without modification, or may need to be ground-down to make the core plug shorter. Another option, depending on the type of plunger, may be to install a shorter coil plunger with A-8143, in place of a longer plunger that is typically paired with short-core stops (such as replacing A-8050 (2-1/4 inch) with shorter # A-8050-1 (2-1/8 inch)).

Coil stop with short core plug for drop target reset and other possible devices in some older Williams games (see game listing below).

Width: 1 inch
Height: 1 inch
Screw hole spacing: 3/8 inch center-to-center
Screw hole diameter: 1/8 inch (accepts #6 screws)
Plate thickness: 0.0575 inch
Core plug height: 3/16 inch
Core plug diameter: 7/16 inch

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Algar, Alien Poker, Barracora, Big Deal (1977), Black Knight, Blackout, Comet, Contact, Cosmic Gunfight, Defender, Disco Fever, Firepower (prototype games only), Flash, Gorgar, Grand Lizard, Grand Prix (Williams), Hot Tip (electro-mechanical), Hot Tip (electronic), Joust (Williams), Jungle Lord, Laser Ball, Laser Cue, Lucky Seven (electro-mechanical), Lucky Seven (electronic), Pharaoh, Phoenix, PinBot, Pokerino, Road Kings, Scorpion, Solar Fire, Sorcerer, Space Shuttle, Stellar Wars, Time Warp, Tri Zone, Warlok
