Eject Switch and Bracket Assembly (Bally/Williams) (SEE NOTES):

Price: $27.76 each
Status: In Stock
(6 Available)

Order:

Part #: A-8933
Condition: New

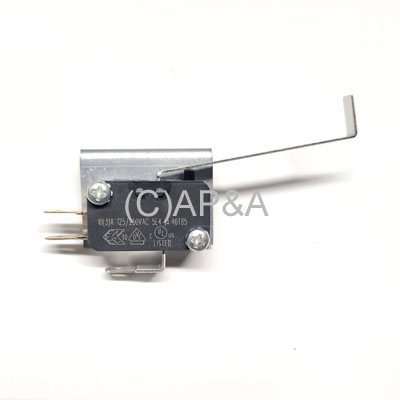

Large microswitch with blade actuator and mounting bracket.

Applications include ball eject/saucer kickouts on many makes and models.

Includes the following parts:

Large microswitch with blade actuator # 5647-12133-11
Mounting bracket # 01-7151
Mounting screw #4-40 x 5/8 (2) # HWR02-100308.

NOTES:

This is an aftermarket replacement switch which differs slightly from the discontinued/obsolete factory original part. Fit and function are the same, but actuator blade on this new switch is slightly wider, measuring 3/16 inches width (original was 1/8 inch wide). Should be no problems with fit (fits/works properly with drop targets, or accompanying eject hole base # 03-9101-9). Switch mounting can be adjusted, or actuator blade trimmed to fit, if required.
All modern switches like this come with 3 solder lugs (original had 2). Top lug (normally closed connection) on 3-lug switches is not connected.
See additional image below for typical wiring connections.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item
