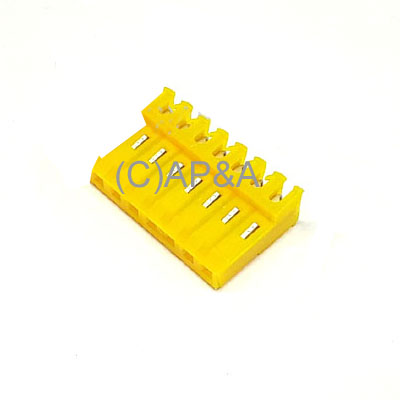

Connector Housing - 7-Position IDC - 0.156 Inch Spacing:
Price: $1.59 each
Status: In Stock
(61 Available)
Part #: A31664-7
Condition: New
|
|
|
Features (see below for more details):- IDC type (Insulation Displacement Connector).
- For 20 gauge wire. Also accepts 18-22 gauge.
- 2-sided: wires can be installed from either side, or run through side-to-side (looped).
- Locking ramp.
Can substitute for Bally/Williams #s 5792-10818-07, 5792-10847-07, 5792-10848-07. Also replaces #s CF15607, CE156F22-7-PP.
IDC housings have built-in terminals, and wires are pressed, or staked into the back of the housing to secure. The wire insulation is displaced when installed, which makes the electrical connection to the terminal in the housing.
Locking Ramp: Locking ramp tabs molded in, which will lock into place on corresponding header pin units with friction lock backing. Can also be installed on housings without friction lock.
Polarizing Keys (Pins): Most connectors will have one position that is blank, which is the key position. This prevents connectors from being installed in the wrong place or direction. New polarizing keys are available separately for this IDC housing.
Image is sample only- color/size of item will vary. Sold individually.
NOTE: No returns on Electronics - all sales final.
Ask a question about this item
Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family, Addams Family Gold, Attack From Mars, Black Rose, Bugs Bunnys Birthday Ball, Cactus Canyon, Champion Pub, Cirqus Voltaire, Corvette, Creature From the Black Lagoon, Doctor Who, Dr. Dude, Gilligans Island, Harley Davidson (Bally), Indianapolis 500, Judge Dredd, NBA Fastbreak, Party Zone, Popeye Saves the Earth, Radical!, Revenge From Mars, Safe Cracker, Scared Stiff, Shadow, Theatre of Magic, Twilight Zone, WhoDunnit, World Cup Soccer '94
MIDWAY: Hot Shots (basketball)
WILLIAMS: Congo, Demolition Man, Dirty Harry, Dracula (Williams), Fish Tales, Flintstones, Funhouse, Getaway High Speed II, Hurricane, Indiana Jones (Williams), JackBot, Johnny Mnemonic, Junk Yard, Machine: Bride of PinBot, Medieval Madness (Williams), Monster Bash, No Fear, No Good Gofers, Riverboat Gambler, Road Show, Slugfest, Star Trek: The Next Generation, Star Wars: Episode 1, Tales of the Arabian Nights, Terminator 2, White Water
|
