Click to Enlarge

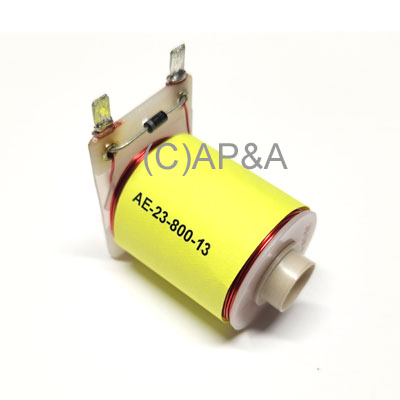

Coil - AE-23-800-13 (Bally/Williams):

Price: $18.38 each

Status: In Stock
(53 Available)

Order:



Part #: AE-23-800-13
Condition: New
Coil with diode mounted on front (top) of solder lugs. Approx. 4.2 ohms.

Includes flanged coil sleeve # 03-7067. Order standard coil sleeve # 03-7066 separately if device you are installing coil in requires a standard sleeve.

NOTE: No returns on Coils & Coil Parts - all sales final.

  • Ask a question about this item

    Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    WILLIAMS: F-14 Tomcat
