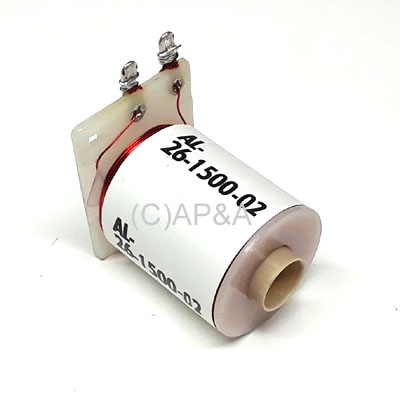

Coil - AL-26-1500-02 (Williams) (SEE NOTE):

Price: $25.38 each
Status: In Stock
(2 Available)

Order:

Part #: AL-26-1500-02
Condition: New

Coil with offset solder lugs, standard coil sleeve # 03-7066 and diode across back (bottom) of solder lugs. Approx. 14.3 ohms. Replaces Wico # 04-133700 and AL-26-1500-01.

NOTE: F-14 Tomcat requires 2 of these coils on the ramp diverter assembly. Game manual mistakenly lists these as AE-26-1500-02. THIS IS A MISPRINT. Order this coil (AL-26-1500-02) for F-14 Tomcat.

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: F-14 Tomcat
