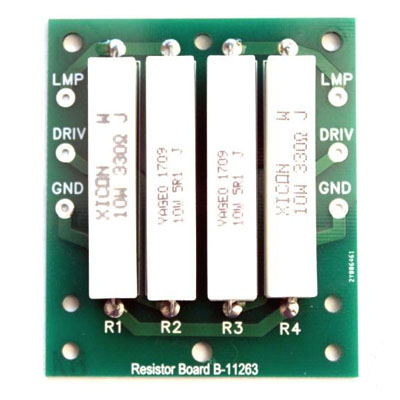

Flash Lamp Resistor Board Assembly (Williams) - Aftermarket Replacement:

Price: $41.59 each
Status: Non-stocked, special-order item. more info...
Part #: B-11263R
Condition: New

New aftermarket replacement flasher lamp resistor PC board assembly used in some older Williams games. Holds 4 ceramic resistors (2 per circuit) which are used to drive flash lamps on the playfield and in the backbox.

Does not include mounting brackets- re-use your old ones.

Reference: Equivalent to # C-11233. Bare (unpopulated) circuit board # 5768-11096-00.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: F-14 Tomcat, Fire!, Millionaire, PinBot, Road Kings
