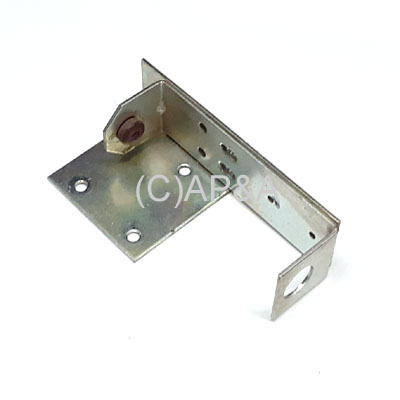

Bracket - Coil Mounting - Ball Kickback - Reinforced (Williams):

Price:
Status: Out of Stock - Discontinued more info...
Part #: B-7409-2
Condition: New

Discontinued - can substitute later part # 01-11273.

Coil mounting bracket for outlane kicker assembly which kicks ball back into play on many older Williams games (see game listing below).

Part of complete kickback assembly # A-6376-3.

This is the vintage original design of this bracket with an extra plate on the outside edge to reinforce and help prevent bending.

No longer made, this bracket was replaced in later years by the non-reinforced # 01-11273 bracket.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Banzai Run, Big Guns, Fan-Tas-Tic, Fun-Fest, Firepower, High Speed, Swinger, Swords of Fury
