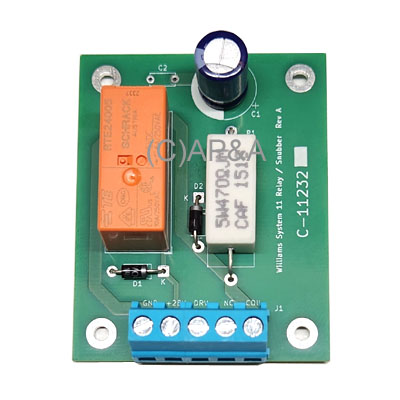

Click to Enlarge

Relay Snubber Board Assy - 24 Volt (Bally/Williams):

Price: $39.99 each
Status: In Stock
(5 Available)

Order:

Part #: C-11232R
Condition: New

New aftermarket replacement relay board assembly for controlling lower-power DC coils, flashlamps, and other devices in many Bally and Williams games from late 1980s and early 1990s. Replaces original factory part # C-11232.

24-volt relay. Contacts rated at 8 amps at 250vac.

Features:

All modern components and new circuit board (mounting standoffs not included- re-install your originals).
Smaller, more compact relay.
Higher-wattage R1 resistor helps avoid overheating problems which under-rated factory originals suffered from.
Screw terminal strip for easy wire attachment (no soldering required).
Easy-to-replace through-hole components (no surface-mount).

Replaces Bally / Williams # 5580-09555-01 (relay) and relay with board assembly #s C-11232. May also replace obsolete Data East/Sega/Stern # 520-5009-00 (unconfirmed).

Application Note:

C-11232: For lower power DC coils, flashlamps, and other devices. Includes C1, D2, R1.
C-11232-1: For AC circuits such as motors and general illumination. Includes C2. No C1, D2, R1.
C-11232-2: For higher power coils. Includes C2, R1. No C1, D2.

Image is sample only- actual item may vary slightly in appearance.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
SEGA: Apollo 13, Goldeneye, Harley Davidson, Lost in Space, Star Wars Trilogy, Twister, Viper Night Drivin'

STERN: Austin Powers, Harley Davidson, NFL (all teams), Playboy, Sharkey's Shootout, Striker Xtreme

WILLIAMS: F-14 Tomcat, High Speed, Road Kings, more
