Relay / Snubber Board Assy - 24 Volt (Bally/Williams) (USED/RECONDITIONED) (SEE NOTES):

Price: $34.99 each
Status: Temporarily out- please check back... more info...
Part #: C-11232U
Condition: Used/Reconditioned

Used relay board for controlling lower power DC coils, flashlamps, and possible other devices in several makes/models of games from late 1980s and early 1990s (see notes, and game listing below).

Original factory part # C-11232.

May also replace obsolete Data East/Sega/Stern # 520-5009-00 (unconfirmed).

NOTES:

Please verify you are ordering the correct part before purchasing, as used parts are not returnable.
This unit connects to game wiring by soldering existing wires to pads on this board (no connector).
Includes mounting standoffs with screw holes.
Includes brand new 24-volt relay.
Includes brand new 2-watt resistor R1.
Unit fully tested/working.

Application Note:

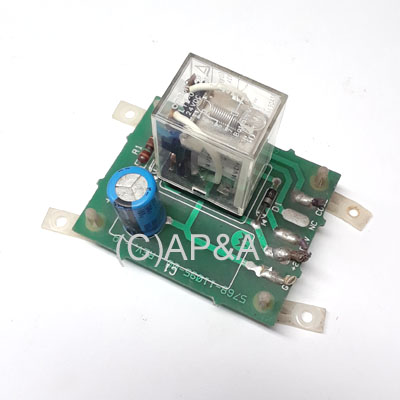

C-11232: (this part) Most common version. For lower power DC coils, flashlamps, and possible other devices. Ships with installed components as pictured.
C-11232-1: For AC circuits such as motors and general illumination.
C-11232-2: For higher power DC coils.

NOTE: No returns on Electronics - all sales final.

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.
