F-14 Tomcat (Williams) Launch Ramp Assembly (USED):

Price: $174.99 each
Status: In Stock
(1 Available)

Order:

Part #: C-11356U
Condition: Used - Very Good

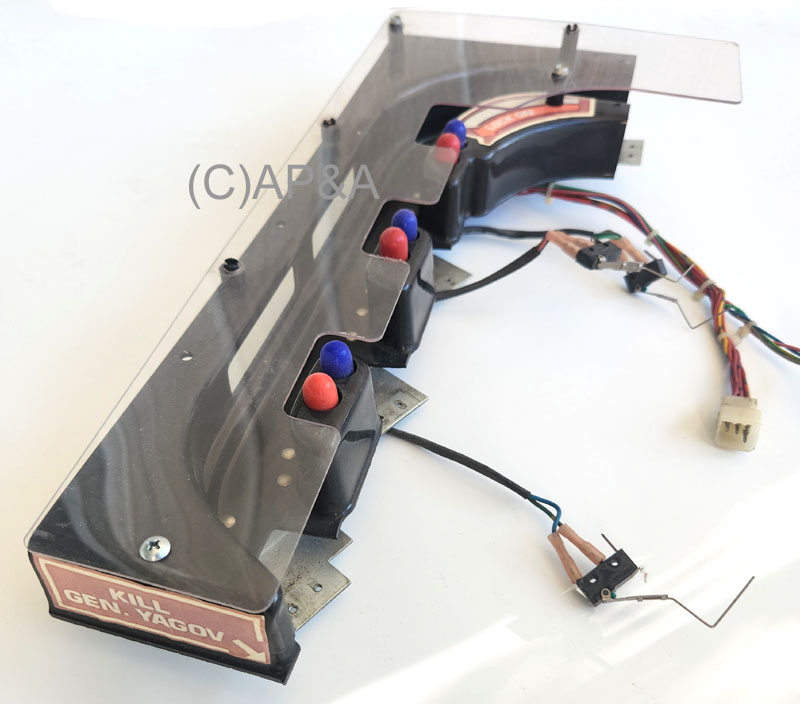

Used launch ramp assembly for Williams F-14 Tomcat pinball. Mounts in upper left corner of playfield and allows balls to be diverted to 1 of 3 separate ramps.

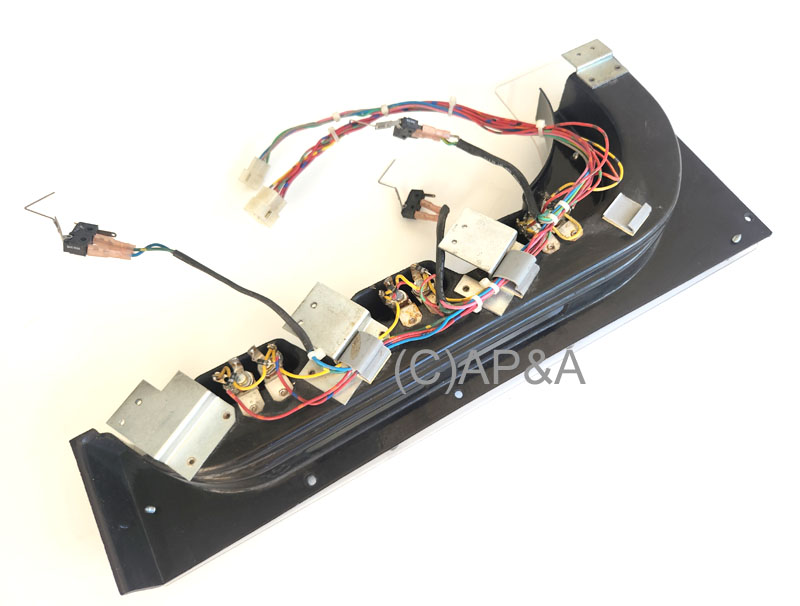

Includes cover plastic, hardware, brackets, wiring, lamps, lamp sockets, decals, and switches, as pictured (see additional images below for more detail).

No cracks or breaks. Shows some slight wear/tear from past use and age.

Used part in very good condition.

Additional Images:
Click to Enlarge

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: F-14 Tomcat
