Ball Release Kicker Arm Mechanism apx. 1990 and earlier (Bally/Williams):

Price: $42.87 each
Status: In Stock
(4 Available)

Order:

Part #: C-9638-3
Condition: New

Ball release kicker arm pivot and assembly. Used on many Bally & Williams games approx. 1990 and earlier. Ships assembled, as shown.

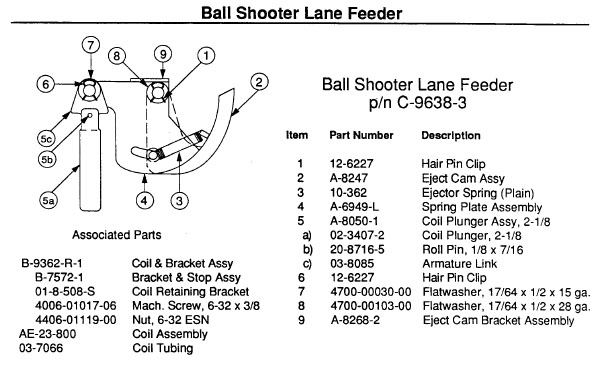

Includes the following parts:

Spring plate assembly- left # A-6949-L
Coil plunger & link- 2-1/8 inch # A-8050-1
Eject cam assembly # A-8247
Pivot Bracket- long- right-hand mount (cut) # A-8268-2
Spring # 10-362
Retainer clip (2) # 12-6227
Flat washer- thick- # 4700-00030-00
Flat washer- thin- # 4700-00103-00

Additional Images:
Click to Enlarge

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Harley Davidson (Bally)

WILLIAMS: Jokerz!, Police Force, Space Station, Taxi, Whirlwind
