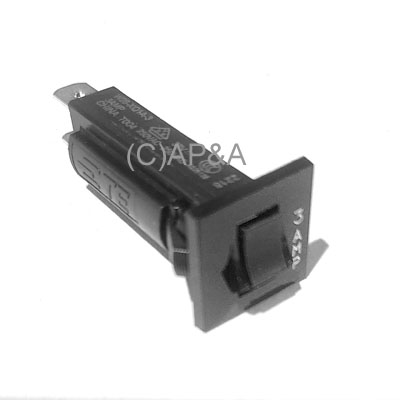

Circuit Breaker - 3 Amp:

Price: $6.99 each
Status: In Stock
(1 Available)

Order:

Part #: CB3A
Condition: New

Resettable 3-amp circuit breaker with connector lugs. See additional image below for measurements/specs.

Use with clip-on test leads (sold separately) for easy, inexepensive troubleshootnig and repair of circuits.

Connect in place of a fuse in your game for testing/diagnosing electrical problems.

Why waste money on fuses that blow over and over again while you are trying to find the problem in your game? This breaker makes testing easy, safe, and inexpensive.

Easy push-to-reset operation allows repeated use over and over again.

Clip one end of test leads to the breaker tabs, and the other end to the fuse clips or other testing location in your game, then power up. If a short is present, or too much current is being drawn, breaker will trip with an audible click.

Once the problem has been found and repaired, you can re-install standard fuse and resume normal game operation.

These are what we use in our shop! We have employed these breakers for years in our shop and in our customers homes to diagnose and repair both electro-mechanical (EM) and electronic solid-state (SS) pinball games, old and new. A great addition to your pinball toolbox- you will wonder how you ever did without one!

Country of Origin: China

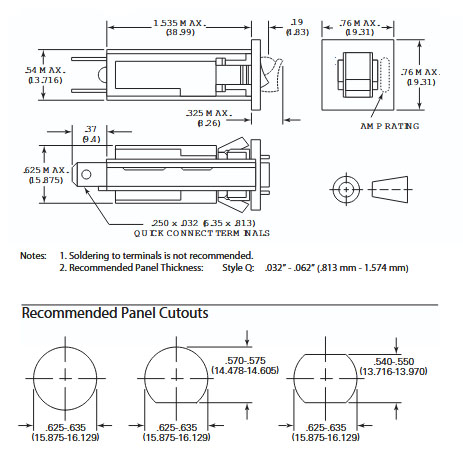

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.
