Capacitor Kit - D-11297 / D-11298 Audio Boards (Williams) (SEE NOTES):

Price: $14.89 each
Status: In Stock
(8 Available)

Order:

Part #: KITSYS11SND1
Condition: New

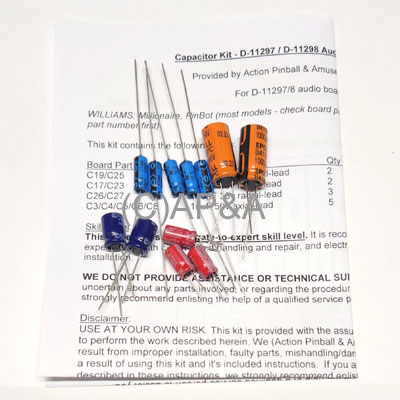

Capacitor kit for D-11297-xxx and D-11298-xxx audio boards used in some mid/late 1980s Williams games (see game listing below). Includes general instructions and parts listing with diagram of part locations.

NOTES:

This kit includes only the larger electrolytic capacitors for the board (see kit part listing below). These are the caps that typically dry out over time and need to be replaced. This kit does not include small disc or poly/film caps used elsewhere on the board. They can be ordered separately/individually if needed.
Capacitors C9, C10, and C34 are not used on most boards, and not included in this kit. Order separately by value, if needed.

Kit part listing:

C19/C25: 1,000uF 16v radial-lead (2pcs)
C17/C23: 470uF 16v radial-lead (2pcs)
C26/C27: 100uF 35v radial-lead (2pcs)
C3/C4/C5/C6/C8: 10uF 50v axial-lead (5pcs)

Requires moderate-to-expert skills with electronics and circuit board work, component handling, ability to ID components and correct pinout of components, circuit board soldering/desoldering, and necessary tools/equipment.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Millionaire, PinBot (most models - check board part number first), F-14 Tomcat (early models - check board part number first)
