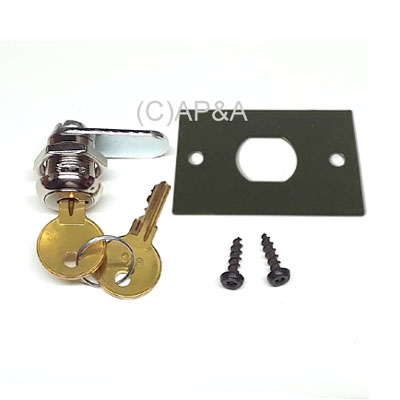

Backbox Lock Assembly 3pcs (Stern) 2-Hole Plate - Chrome 5/8 Inch Lock (SEE NOTES):

Price: $17.56 each
Status: In Stock
(2 Available)

Order:

Part #: LOCK_ASSY1
Condition: New

Lock and plate assembly for backbox for some Stern Pinball games (see notes and game listing below). Keeps backglass in place when locked, and interior of backbox secure.

Includes the following parts:

Lock plate (2-hole) # 535-0072-00
5/8 inch barrel lock, chrome # LOCKSB58
Mounting screws, security Torx (2) # 237-5947-00

NOTES:

Lock size varies on some models- some games may use a longer 7/8-inch barrel lock. If you need the 7/8-inch lock, please order part # LOCK_ASSY3 instead.
Security Torx mounting screws require a special wrench for installation/removal. Order wrench # 20-9620 if needed (sold separately). You can also use standard Phillips-head screws # HWR02-190808B as an alternative (sold separately).

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
(See notes above) STERN: 24, AC/DC (NOT Vault Edition), Avatar, Avengers, Batman The Dark Knight, Big Buck Hunter Pro, CSI, Family Guy, Indiana Jones (Stern), Iron Man, Metallica, NBA, Rolling Stones (Stern), Shrek, Spider-Man (Stern), Transformers, TRON: Legacy, Wheel of Fortune, X-Men
