Opto Emitter PCB Assembly (Gottlieb / Premier) (SEE NOTES):

Price: $12.99 each
Status: In Stock
(1 Available)

Order:

Part #: MA-1330
Condition: New

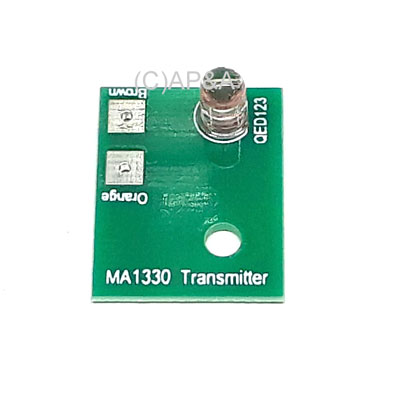

Small opto emitter assembly including # 31082 PCB with # XO-994 infrared LED element for some late-model Gottlieb/Premier games.

Pair with MA-1331 receiver assembly (sold separately).

Measures 3/4-inch wide x 1 inch tall.

Replaces #s MA-1330, 31082, and 31240.

NOTES:

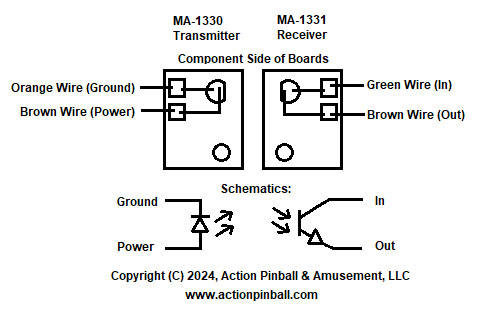

Wires must be connected correctly to opto PC board for proper operation (connection/schematic diagram is included, also see additional image below).
If you reverse wires, or otherwise connect them improperly, you may destroy the unit and have to buy a new one.
Refer to wiring diagram that comes with this part. Also observe wire connections from old opto PC boards that you are replacing (assuming their connections are correct), and/or consult your game manual/schematics for further wiring colors and proper connections.
TESTING: With wires connected properly, and proper voltage present, emitter LED can be observed projecting light by viewing through a digital camera (pics up infrared light). LED will glow purple when lit up and viewed through digital camera.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
GOTTLIEB: Stargate, Surf 'n Safari, Waterworld, Wipeout, more
