Opto Receiver PCB Assembly (Gottlieb / Premier) (SEE NOTES):

Price: $12.99 each
Status: In Stock
(1 Available)

Order:

Part #: MA-1331
Condition: New

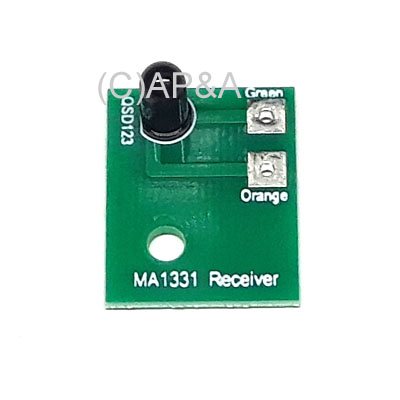

Small opto receiver assembly including # 31083 PCB with # XO-993 receiver transistor element for some late-model Gottlieb/Premier games.

Pair with MA-1330 emitter assembly (sold separately).

Measures 3/4-inch wide x 1 inch tall.

Replaces #s MA-1331, 31083, and 31241.

NOTES:

Wires must be connected correctly to opto PC board for proper operation (connection/schematic diagram is included, also see additional image below).
If you reverse wires, or otherwise connect them improperly, you may destroy the unit and have to buy a new one.
Refer to wiring diagram that comes with this part. Also observe wire connections from old opto PC boards that you are replacing (assuming their connections are correct), and/or consult your game manual/schematics for further wiring colors and proper connections.
TESTING: With PCB disconnected and using a digital multimeter set on diode test, red lead to IN (green wire) terminal, black lead to OUT (brown wire) terminal, some resistance should appear on the meter when direct light is projected on receiver element.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
GOTTLIEB: Stargate, Surf 'n Safari, Waterworld, Wipeout, more
