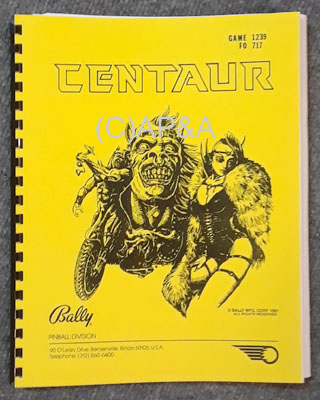

Centaur / Centaur II (Bally) Game Manual & Schematics:

Price: $28.60 each

Status: In Stock
Order:



Part #: PM0076
Condition: New (Reprint)
60 pages. For original Centaur but can be used with Centaur II as well.

Includes game operating/adjustment instructions, parts listing, diagnostics, and fold-out schematics/wiring diagrams.

Also includes 2 factory Service Bulletins:
  1. Required modification to any Solenoid Expander PC Board that is used in this particular game to prevent fuses from blowing
  2. Modification to sound board for reducing distortion when used with Say It Again reverb board
Reprint manual in new condition.

NOTE: No returns on Paperwork Items - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    BALLY: Centaur
