El Toro (Bally) Main Schematic Wiring Diagram (Reprint) (SEE NOTE):

Price: $25.00 each
Status: In Stock

Order:

Part #: PM0127
Condition: New (Reprint)

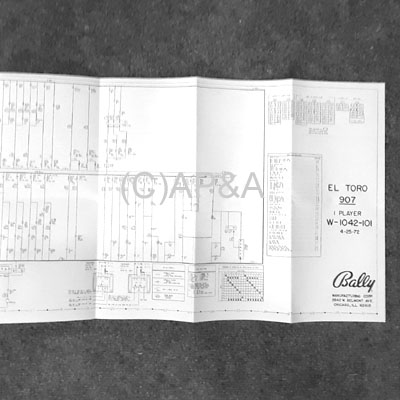

Main fold-out wiring diagram for entire game except coin door circuits (see note below). Includes diagrams of game circuits with listings of relays/coils/solenoids and part numbers. Reprint diagram in new condition. Original factory part # W-1042-101.

NOTE: A separate coin door & coin circuits wiring diagram is not available for this model, but if needed, you may be able to use Bally Coin Door Circuits Schematic (Sep. 1972), available separately.

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: El Toro
