Freedom (Bally) Schematic Wiring Diagrams Set - 2pcs (Electro-Mechanical Model) (Reprint) (SEE NOTE):

Price: $26.00 set
Status: In Stock

Order:

Part #: PM0160
Condition: New (Reprint)

2 pages. For electro-mechanical (EM) version of Bally Freedom (these diagrams are not for the electronic solid-state (SS) model).

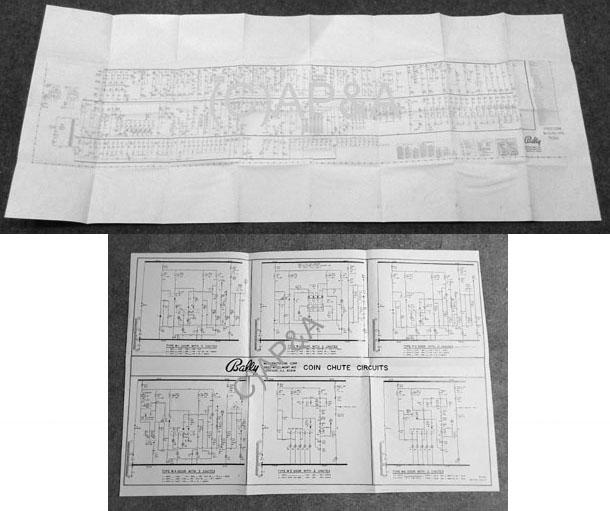

Includes large fold-out main schematic diagram, and separate coin chute circuits diagram. Features diagrams of all circuits with listings of relays/coils/solenoids and part numbers. Reprint diagrams in new condition.

NOTE: Two versions of the electro-mechanical (EM) version of Freedom were produced- one with 3 pop bumpers (version 1) and one with 4 pop bumpers (version 2). These diagrams are for the version 1 game, but can also be used with the version 2 game as well. Diagrams of both playfield versions are shown below, so you can verify which version you have.

Additional Images:
Click to Enlarge

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Freedom (electro-mechanical version)
