Action Pinball - PM0241 - El Toro (Bally) Game Manual and Main Schematic Wiring Diagram Set 2pcs (Reprint) (SEE NOTE)

Pinball Parts

Action Pinball - Salt Lake City, UT, USA - Contact Us

Quick Links: - Home Page
- Game Parts & Supplies
- Games for Sale
- Ordering Info
- Technical Articles
- Game Service & Repair
- Contact Us

- US Shipping Only. International customers can order using a US forwarding service. (more info)

Click to Enlarge

El Toro (Bally) Game Manual and Main Schematic Wiring Diagram Set 2pcs (Reprint) (SEE NOTE):

Price: $38.50 set
Status: In Stock

Order:

Part #: PM0241
Condition: New (Reprint)

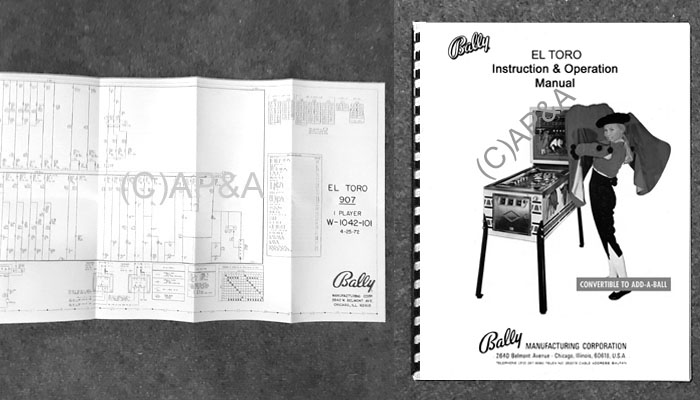

Buy together and save! 2-piece set of game manual and fold-out main schematic wiring diagram for Bally El Toro pinball.

Manual is 10 pages and includes info on game setup, operation, game features and scoring, game adjustments, and top-side playfield diagram with part listings and part numbers.

Wiring diagram includes info for all of game except coin door circuits (see note below).

Reprint documents in new condition.

NOTE: A separate coin door & coin circuits wiring diagram is not available for this model, but if needed, you may be able to use Bally Coin Door Circuits Schematic (Sep. 1972), available separately.

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: El Toro
